The UXV 700i EPS LE is powered by KYMCO’s smooth 45 horsepower engine, which features a new and improved automatic CVT-Drive system, including all-important active engine braking. Off road the UXV really feels at home, with plenty of ground clearance, a simple ‘push button’ two-wheel-drive / four-wheel-drive activation and independent dual A-Arm suspension front and rear. Bred to work, the UXV has a generously sized tipping cargo bed and a hefty 550kg tow capacity to get more done in your workday. The LE badge adds an array of premium features, including a striking gloss blue (automotive-grade paint) livery, power steering, a 2500-pound winch, a roof kit, half doors and 14” black alloy wheels, all as standard equipment.
Visit your local dealer and see why your next side-by-side for the farm should be a KYMCO.
POWERFUL 45HP FOUR-STROKE ENGINE
659cc, SOHC, liquid-cooled four-stroke engine with new EFI mapping provides plenty of power
SMOOTH ELECTRONIC POWER STEERING
Electronic power steering reduces rider fatigue and provides increased manoeuvrability
ADVANCED ELECTRONIC FUEL INJECTION
Electronic fuel injection delivers easier starting, smoother power and increased efficiency

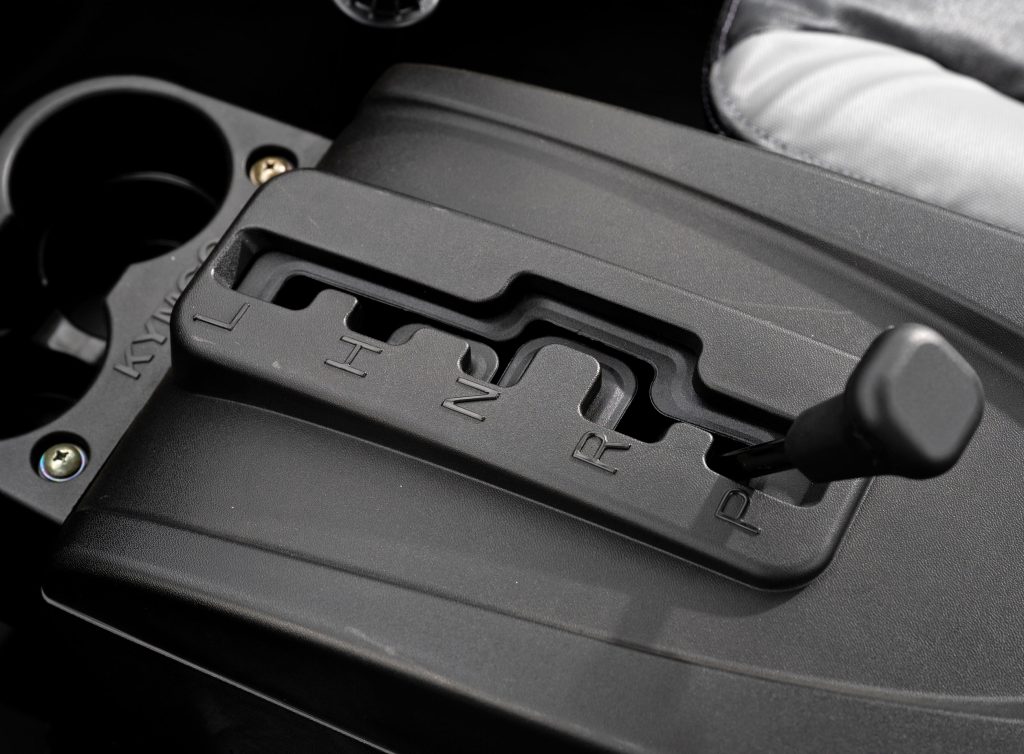

HIGH / LOW RANGE SELECTOR
CVT automatic transmission with high / low range selector
ACTIVE ENGINE BRAKING
Active engine braking retards excess speed
SELECTABLE DRIVE MODES WITH DIFF LOCK
Diff lock with push button selectable 2WD / 4WD will master any terrain
SUPERIOR BRAKING PERFORMANCE
Front and rear hydraulic disc brakes with braided lines provide superior braking
PARKING BRAKE
Shaft mounted parking brake for safe parking while the operator is off the machine
BROAD HALOGEN LIGHTING
Twin front halogen head lamps with high / low beam provide a broad spread of light
REAR HALOGEN BRAKE LAMPS
Rear halogen brake lamps for enhanced visibility
BRIGHT LED FRONT POSITION LAMPS
LED front position lamps increase vehicle visibility
DIGITAL INSTRUMENTATION
Backlit digital instrument display
FRONT AND REAR INDEPENDENT SUSPENSION
Dual A-Arm front and rear independent suspension provides 12 inches of ground clearance
ADJUSTABLE SHOCK ABSORBERS
Premium KAIFA gas-charged reservoir shock absorbers offer preload, compression and rebound adjustment
STANDARD WINCH
The 2500lb (1134kg) winch will help you clear any obstacles.
ALLOY WHEELS
Sporty 14-inch black aluminium alloy wheels shod with 26-inch Kenda tyres
CONVENIENT 12V DC OUTLET AND USB PORT
Sealed in dash 12V DC outlet and USB port to charge your devices or run a spotlight
HALF DOORS
Protects the occupants from debris while maintaining airflow. Constructed from durable materials with automotive-style external door handles.
ROOF
Provides protection from the elements and reduces in cabin noise, this roof features a contoured design to improve vehicle appearance and assist with water runoff.
ROLL CAGE
Redesigned roll cage with increased headroom and added protection
AUTOMOTIVE STYLE 3-POINT SHOULDER SEAT BELTS
3-point shoulder seat belts for occupant protection with safety interlock
SEAT BELT REMINDER LAMP
Instrumentation features seat belt reminder warning lamp
INTEGRATED STORAGE
Under-hood, under-seat and lockable glove box storage
TILTING CARGO BED
Gas assisted tilting cargo bed with dual control levers on driver and passenger side
UNDER SIDE SKID PLATES
Front brush guard and under side skid plates deflect debris from vital components
SIDE NETTING
Side netting protects occupants from side intrusion
FACTORY WARRANTY
Three year factory warranty program* supported by a national dealer network
| Type | SOHC, liquid-cooled, four-stroke |
| Displacement | 695cc |
| Power | 45 HP @ 6500 RPM |
| Bore x Stroke | 102 x 85 mm |
| Compression ratio | 10.5:1 |
| Fuel system | Electronic Fuel Injection |
| Ignition | ECU |
| Starting system | Electric |
| Transmission | CVT automatic with dual range, reverse gear and active engine braking |
| Final drive | Push button selectable 4WD with locking front differential, Shaft |
| Front suspension | Independent dual A-Arm with adjustable KAIFA gas-reservoir shock absorbers |
| Rear suspension | Independent dual A-Arm with KAIFA gas-reservoir shock absorbers |
| Front tyre size | 26 x 9 – 14 inch / Alloy wheels |
| Rear tyre size | 26 x 11 – 14 inch / Alloy wheels |
| Front brakes | Dual hydraulic disc, 202 mm |
| Rear brakes | Single hydraulic disc, 200 mm |
| Cargo bed size | 1210 mm x 820 mm x 310 mm |
| Cargo bed payload | 200 kg |
| Tow | 550 kg |
| Length x Width x Height | 2870 mm x 1500 mm x 1850 mm |
| Wheelbase | 1910 mm |
| Ground clearance | 300 mm |
| Fuel capacity | 32 L |
| Dry weight | 552 kg |
| Colour | Sapphire Blue |
| Warranty | 3 year factory program* |
*Price excludes GST. KYMCO products are supported by our three-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
