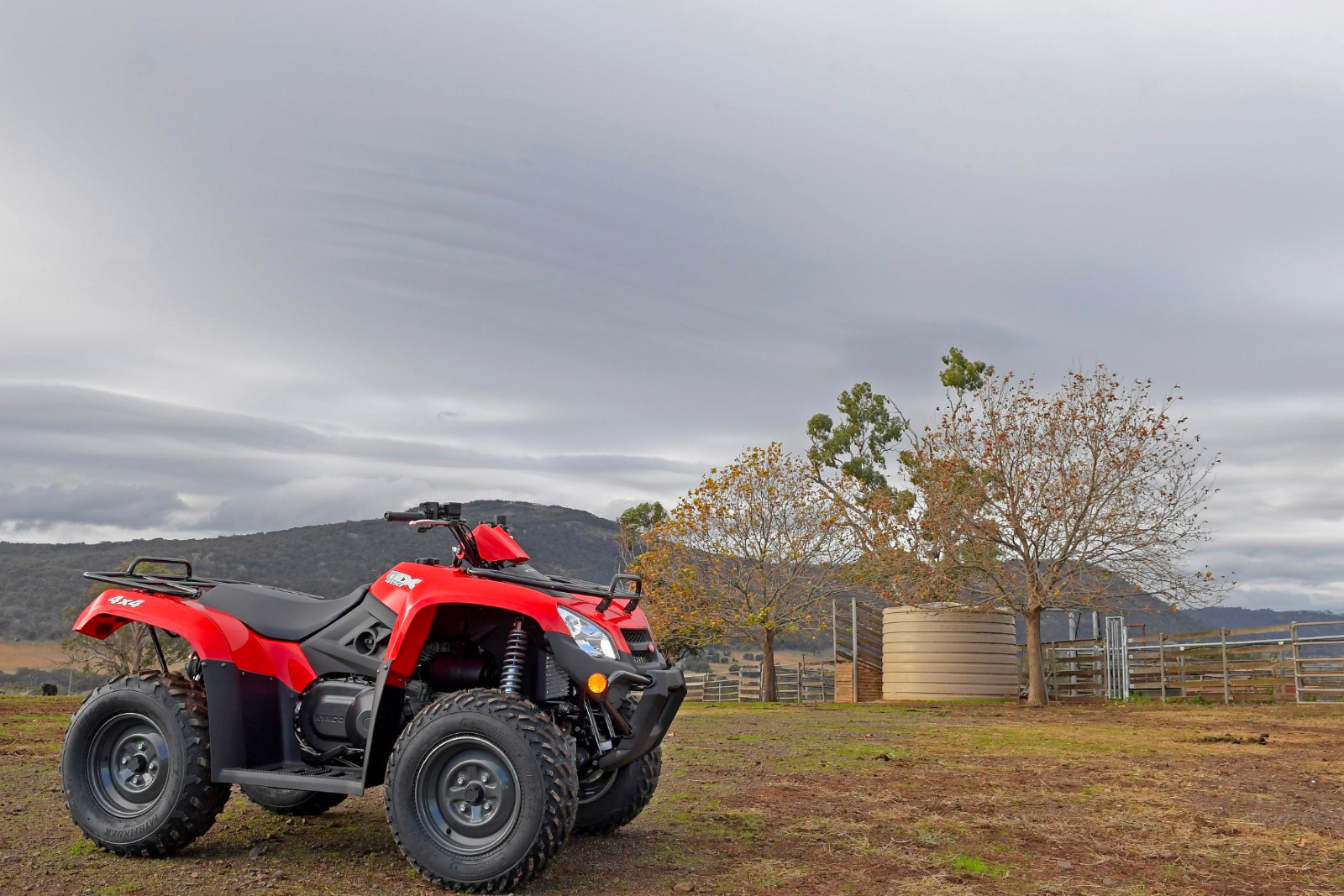

With the simplicity of a carburetor and the reliability of an air- and oil-cooled engine, the KYMCO MXU 400 is the number one choice for Aussie farmers. Practical power delivered through a CVT automatic transmission with selectable high/low range for flexible work speeds. Independent suspension all-round and push button-selectable 2WD/4WD will keep you moving no matter the terrain. Bulletproof reliability – simplicity at its best.
RELIABLE FOUR-STROKE ENGINE
Air/oil-cooled, SOHC, four-stroke engine
SIMPLICITY OF A CARBURETOR
Back to basics reliability of a Keihin carburetor

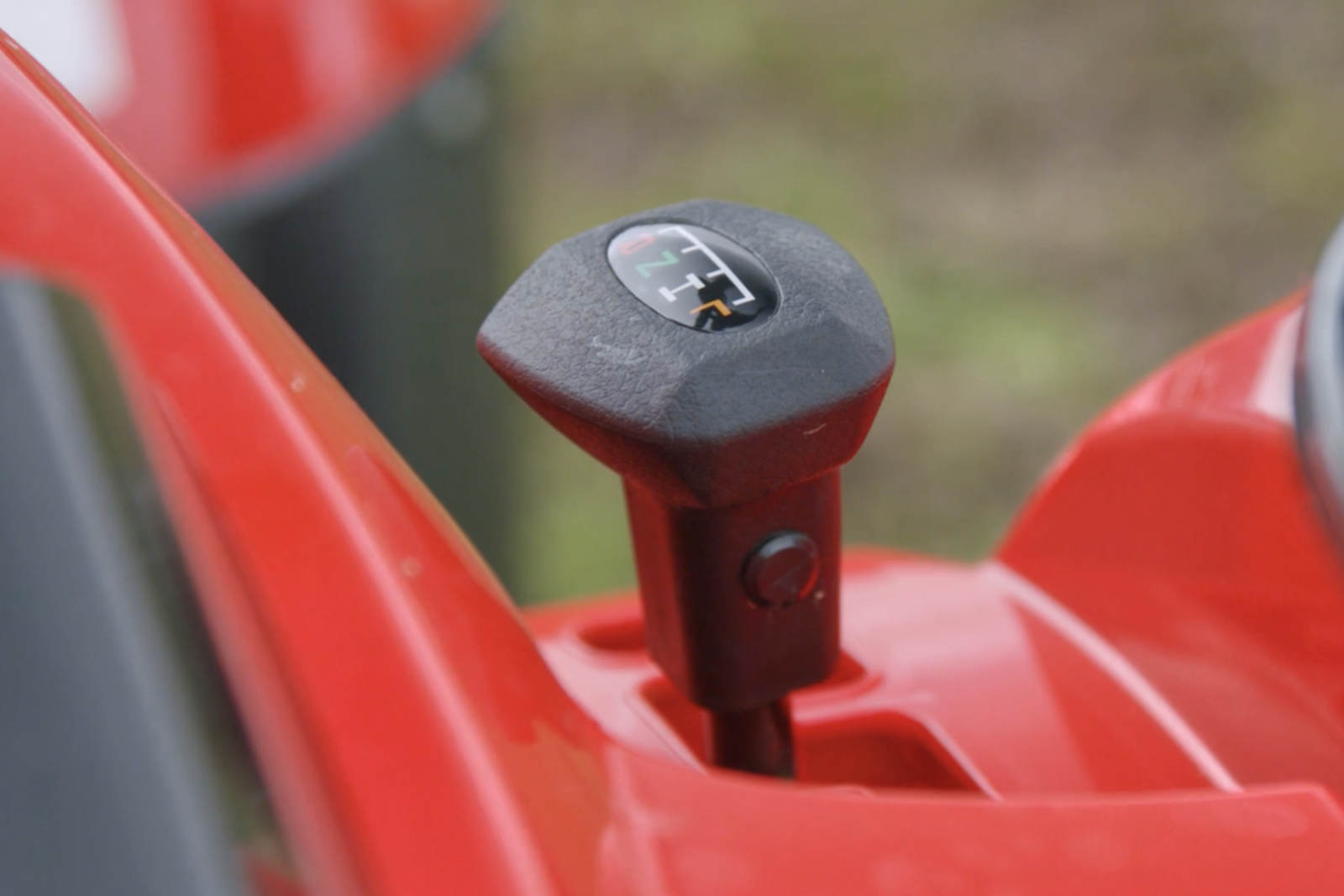

HIGH/LOW RANGE SELECTOR
CVT automatic transmission with high/low range selector
ACTIVE ENGINE BRAKING
Active engine braking retards excess speed

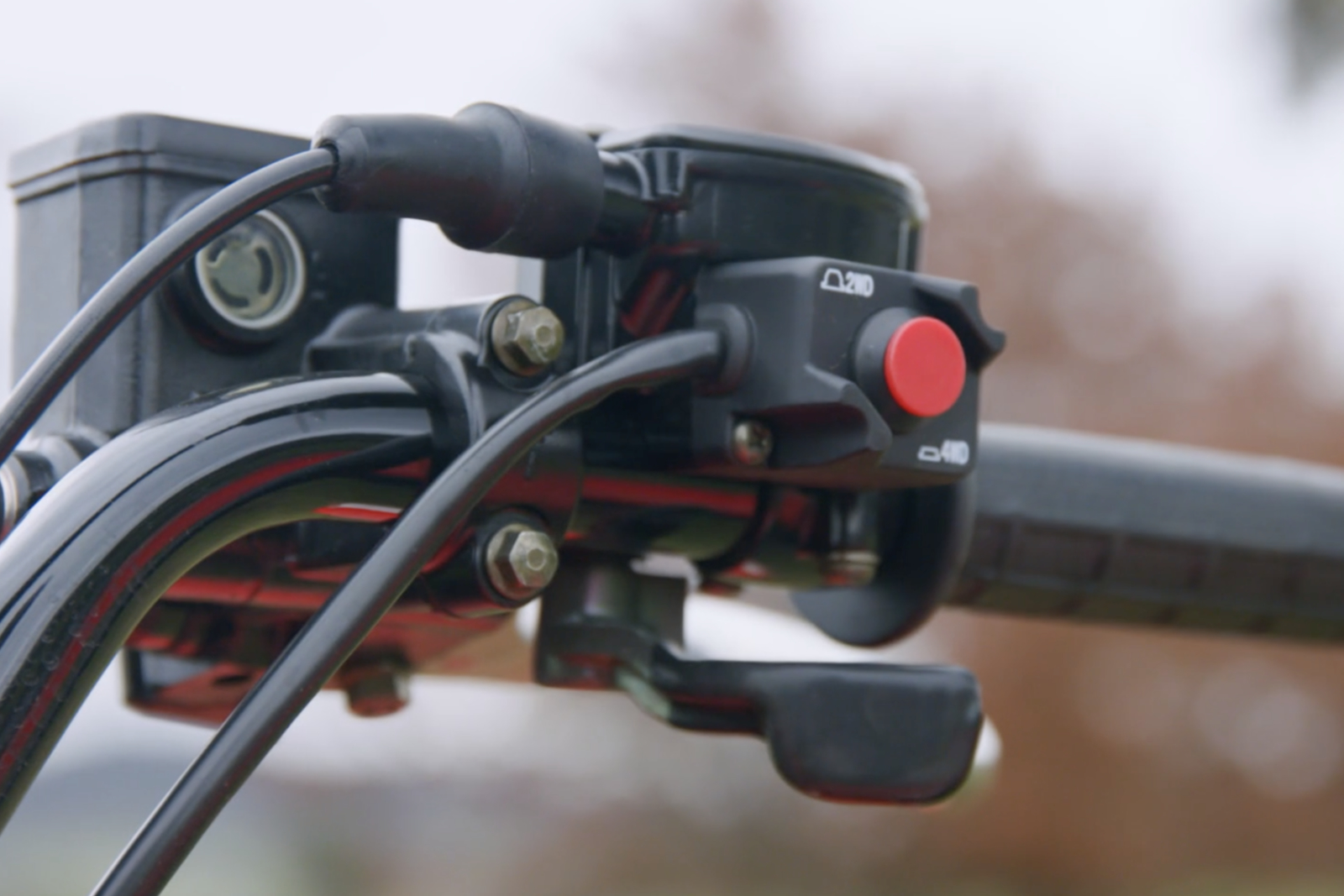

SELECTABLE DRIVE MODES
Push button-selectable 2WD/4WD will master any terrain
EASY ELECTRIC START
Electric start makes starting simple every time
SUPERIOR BRAKING PERFORMANCE
Front and rear linked hydraulic disc brakes provide superior braking performance
PARK BRAKE
Parking brake for safe parking while the rider is off the machine
BROAD HALOGEN LIGHTING
Twin front halogen headlamps with high/low beam provide a broad spread of light

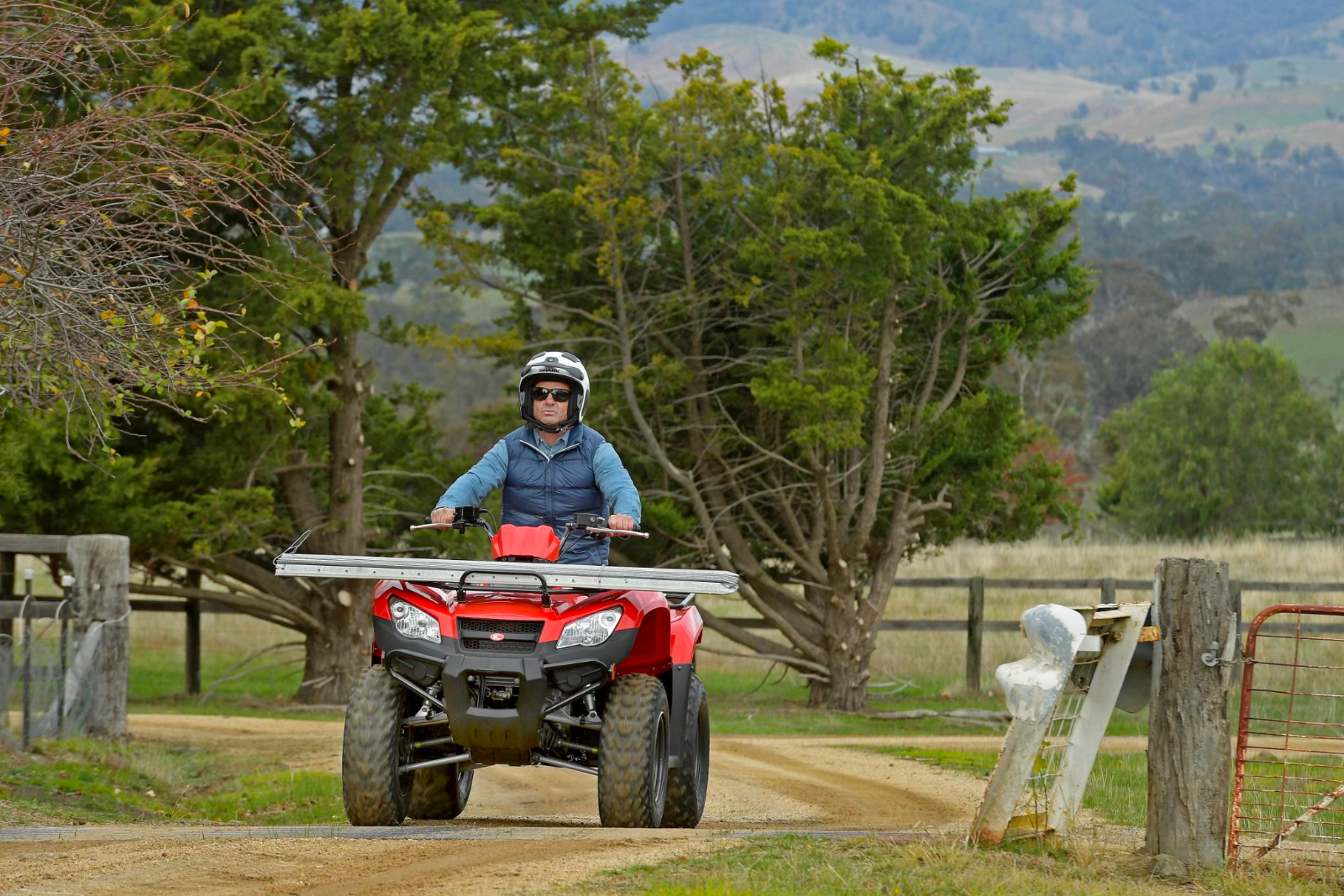

STRONG FRONT AND REAR CARRY RACKS
Front and rear carry racks allow you to haul additional equipment

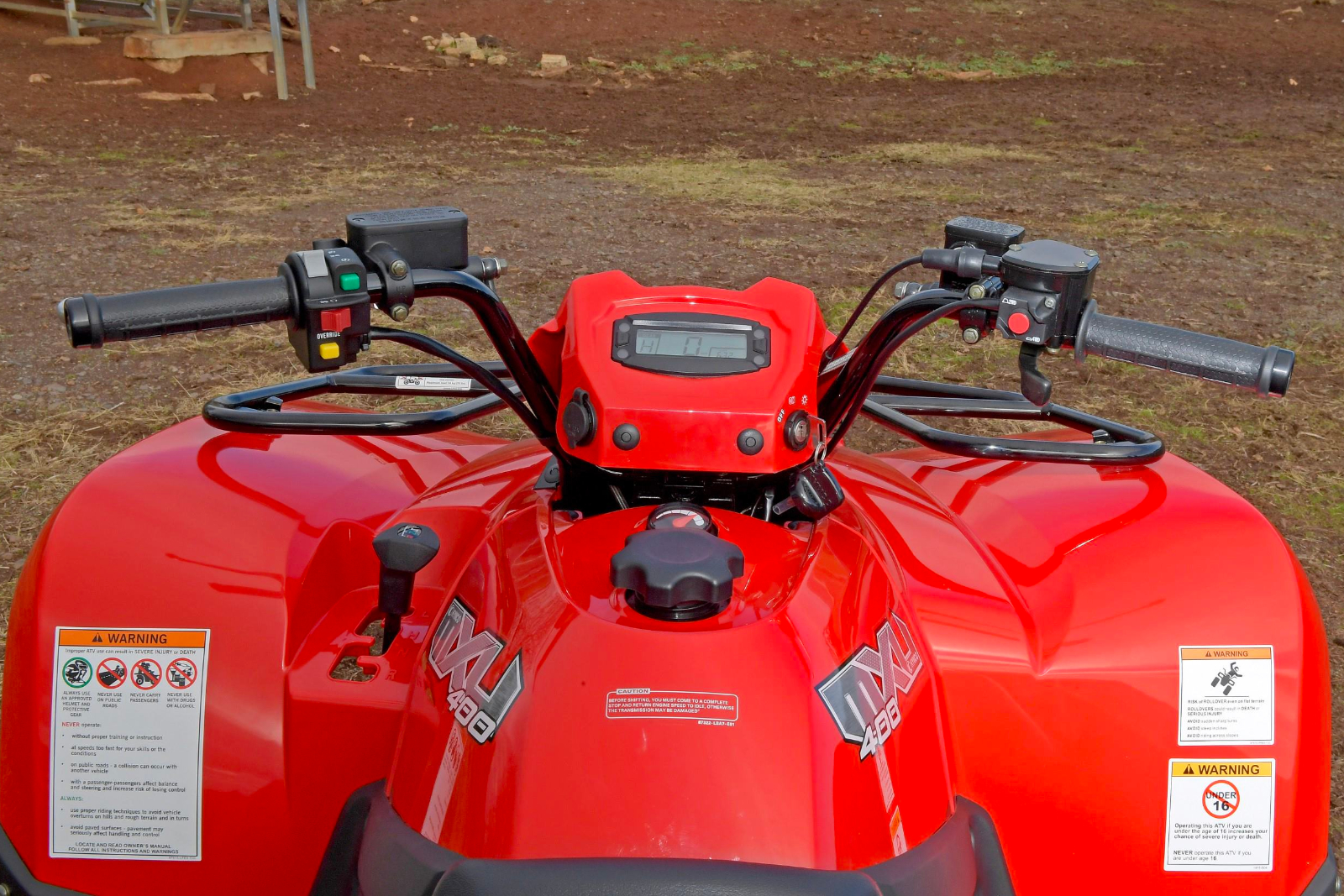

STRAIGHT FORWARD INSTRUMENTATION
Backlit digital dash with speedometer, clock, trip meter, fuel and temperature indicators

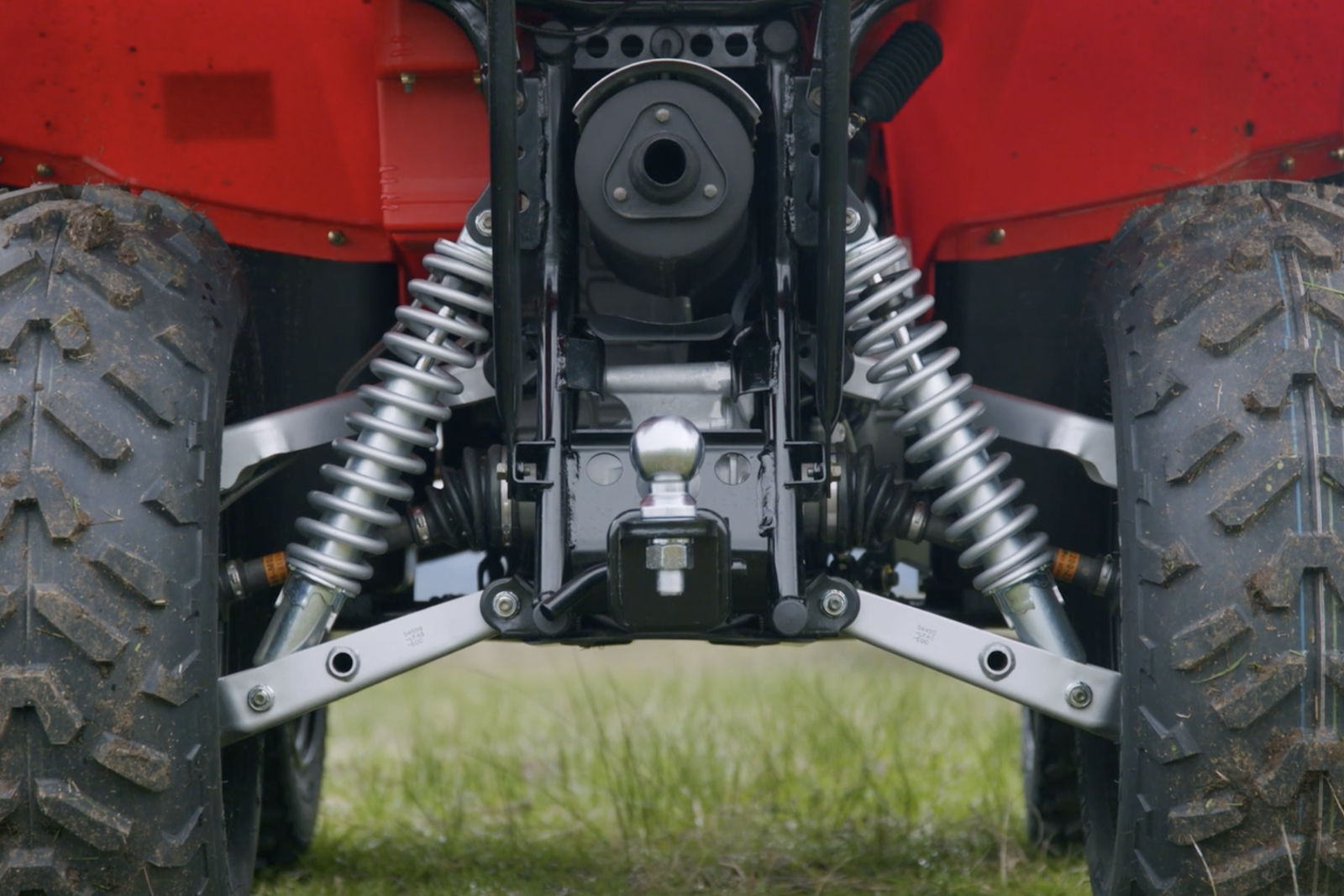

FRONT AND REAR INDEPENDENT SUSPENSION
Dual A-arm front and rear independent suspension provides 267mm of ground clearance
ADJUSTABLE SHOCK ABSORBERS
Adjustable shock absorbers offer 178mm of travel for stable handling
DURABLE STEEL WHEELS
12-inch steel wheels are durable and simple to keep clean
CONVENIENT 12V DC OUTLET
Sealed 12V DC outlet to charge your devices or run a spotlight
LARGE FUEL TANK
Large 15-litre fuel tank will allow you to travel further between filling up
INCREASED TYRE SIZE
Large 24-inch front and rear tyres deliver unbeatable traction
UNDERSIDE SKID PLATES
Front brush guard and underside skid plates deflect debris from vital components
DEEP UNDER SEAT STORAGE
Secure underseat storage provides additional storage capacity
FACTORY WARRANTY
Three-year factory warranty program* supported by a national dealer network
| Engine | SOHC, air/oil cooled four-stroke |
| Displacement | 367cc |
| Power | 14.9kW (200hp) at 6500rpm |
| Bore x stroke | 81 x 71.2mm |
| Compression ratio | 9.2:1 |
| Fuel system | Carburetor |
| Ignition | ECU |
| Starting system | Electric |
| Transmission | CVT automatic with dual range and reverse gear |
| Final drive | Push button-selectable 4WD, shaft |
| Front suspension | Independent dual A-arm with twin shock absorbers |
| Rear suspension | Independent dual A-arm with twin shock absorbers |
| Front tyre size | 24-inch |
| Rear tyre size | 24-inch |
| Front brake | Hydraulic disc |
| Rear brake | Hydraulic disc |
| Capacity | |
| Carrying | 34kg front and 68kg rear |
| Towing | 447kg |
| Length | 2123mm |
| Width | 1102mm |
| Height | 1192mm |
| Wheelbase | 1217mm |
| Seat height | 843mm |
| Ground clearance | 268mm |
| Fuel capacity | 15 litres |
| Dry weight | 276kg |
| OTHER | |
| Colour | Red |
| Warranty | Three-year factory program* |
*Price excludes GST. KYMCO products are supported by our three-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
